our Products

Everything you need is now available under one roof.

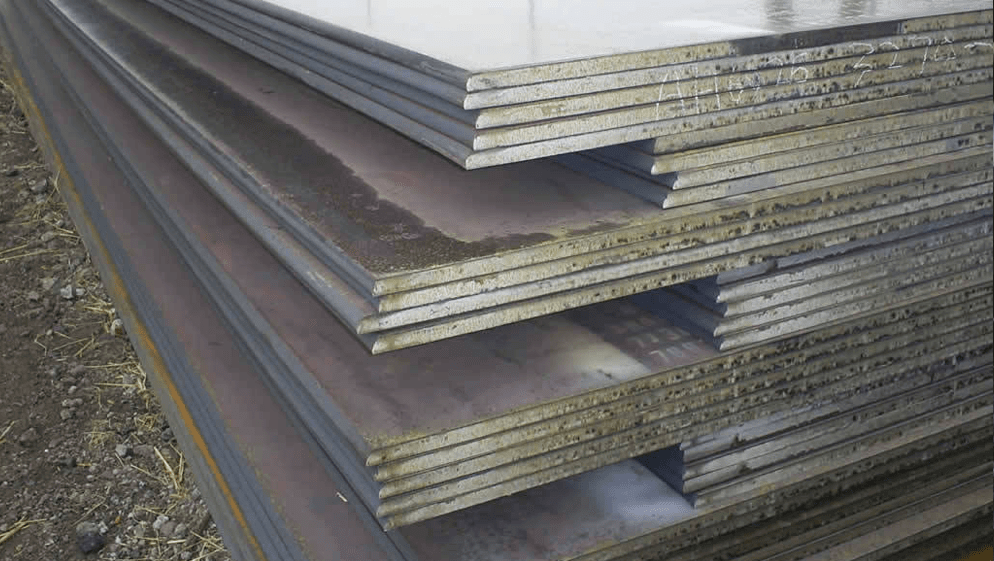

  • M.S. Plates
  • Hot Rolled Sheets

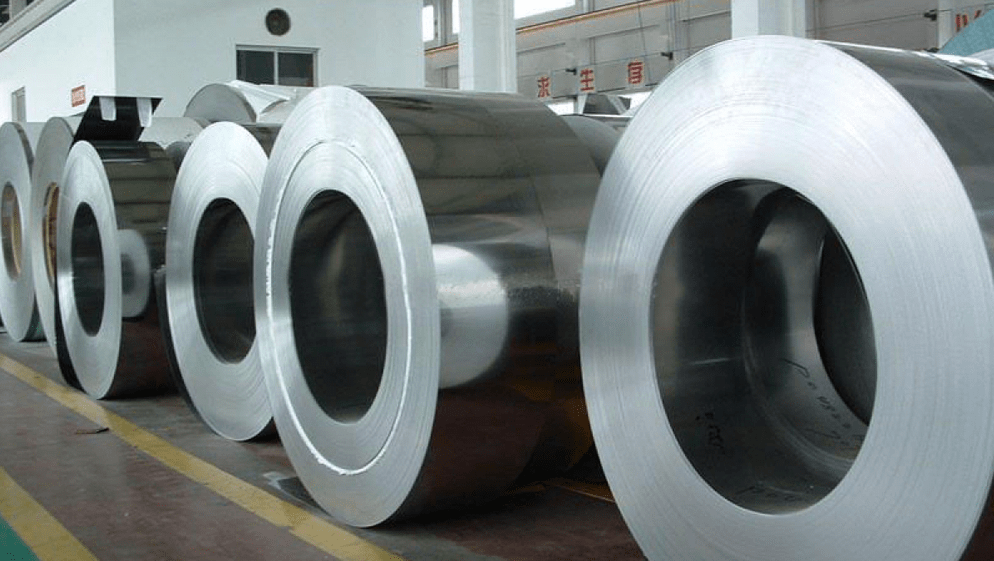

  • Cold Rolled Sheets
  • Galvanised Plain Sheets
  • Galvanised Corrugated Sheets
  • M.S. Beams
  • M.S. Channels
  • M.S. Angles
  • M.S. Rounds
  • M.S. Squares

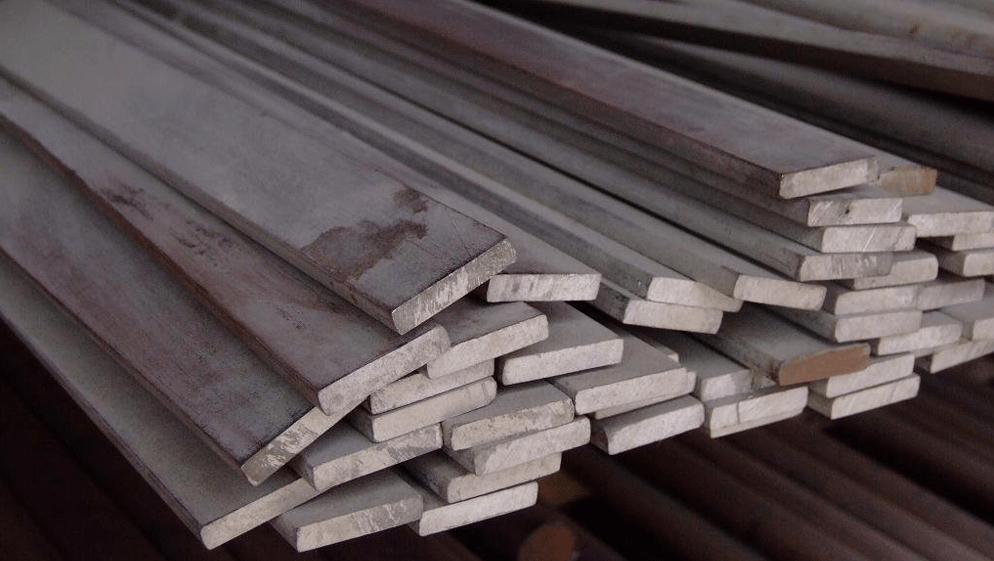

  • M.S. Flats
  • M.S. (T) Sections

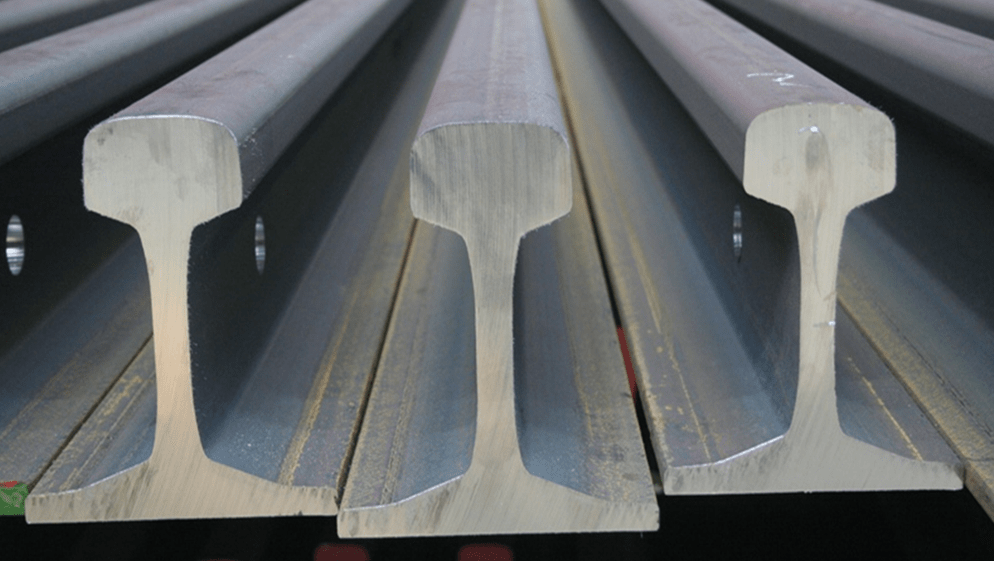

  • Rails
  • TMT

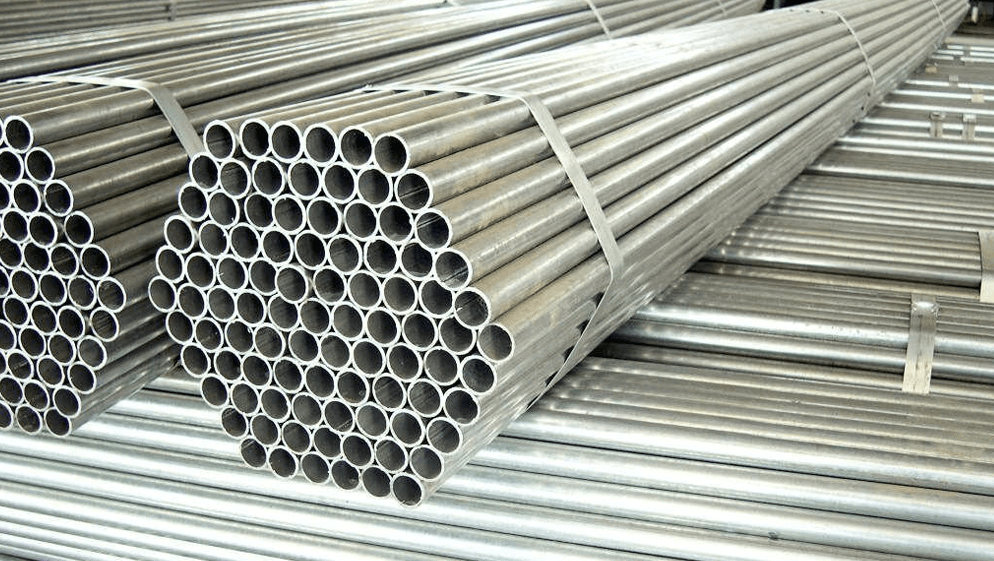

  • M.S. Pipes
  • B.Q.PLATES

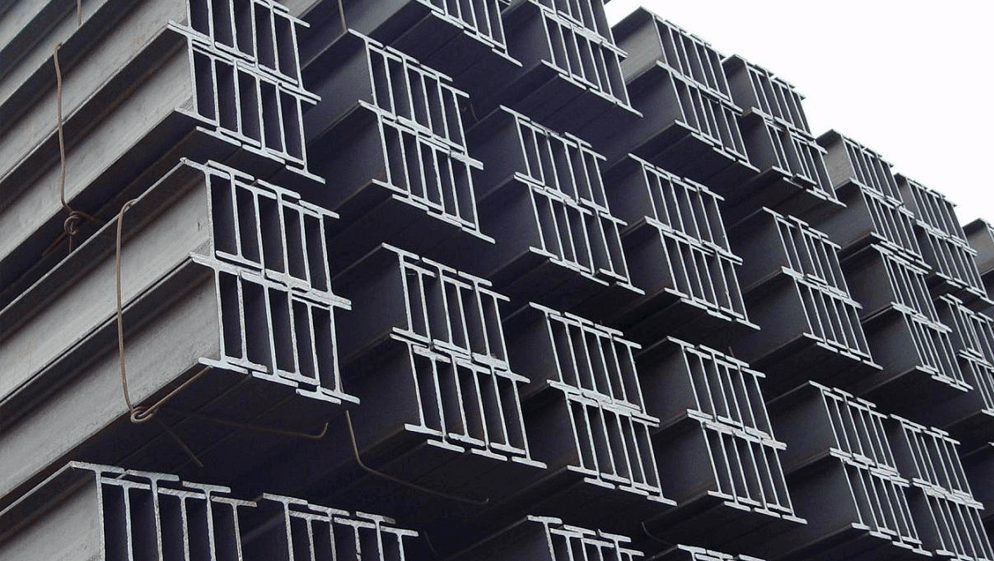

  • H BEAMS
  • PROFILE CUTTING

Make : Sail & Essar

USe FOR

  • Boiler & Pressure Vessels
  • Ship Building
  • Railways
  • Heat Exchangers
  • Oil & Petrochemicals
  • Marine Containers
  • Coal & Mining
  • General & Heavy Engineering
Range Sail Essar Jindal Welspun
Thickness 5 - 100 MM 5 - 20 MM 10 - 110 MM 10 - 100 MM
Width 1000 - 3200 750 - 2000 1500 - 3500 1500 - 2500
Length 4500 - 12500 2500 - 12000 6300 - 12500 6000 - 12000
Thickness Tolerence AS PER DIN 1016 AS PER DIN 1016 AS PER DIN 1016 AS PER DIN 1016

Inquire Now

Make : Sail & Essar

USe FOR

  • LPG Cylinder Fabricators
  • Railways
  • Automobiles
  • Marine Freight Containers
  • General and Heavy Engineering
Thickness (in mm) Width (in mm ) Length (in mm )
2.00 (14G) 750,1000,1100,1250,2000 2000,2500
2.50 (12G) 750,1000,1100,1250,1400,2000 2000,2500,4000,4500,6300
3.15 (10G) 750,1000,1100,1250,1400,2000 2000,2500,4000,4500,6300
3.55 (9G) 750,1000,1100,1250,1400,2000 2000,2500,4000,4500,6300
4.00 (8G) 750,1000,1100,1250,1400,2000 2000,2500,4000,4500,6300

Inquire Now

Make : Sail & Essar

USe FOR

  • Automotive Body & Components
  • Drums & Barrels
  • White Goods
  • Pipes & Tubes
  • Furniture & Office Equipment
  • General Engineering Application
Thickness (in mm) Width (in mm ) Length (in mm )
0.14 - 3.175 600 - 1525 MM 2000,2500

Inquire Now

Make :Sail, Essar & Jindal

USe FOR

  • Construction
  • Corrugated Sheets
  • Agriculture Equipment
  • Automotive Applications
  • General Engineering Applications
  • White Goods
  • Color Coating
Thickness(in mm) (Gauge in bracket) Width (mm) Length (mm)
1.6 (16), 1.25 (18) 600,900,1000,1100,1370 2500, 3000
1.00 (20), 0.8 (22) 600,900,1000,1100,1370 2500, 3000
0.63 (24), 0.50 (26) 600,900,1000,1100,1370 2500, 3000
0.4 (28) 600,900,1000,1100,1370 2500, 3000

Inquire Now

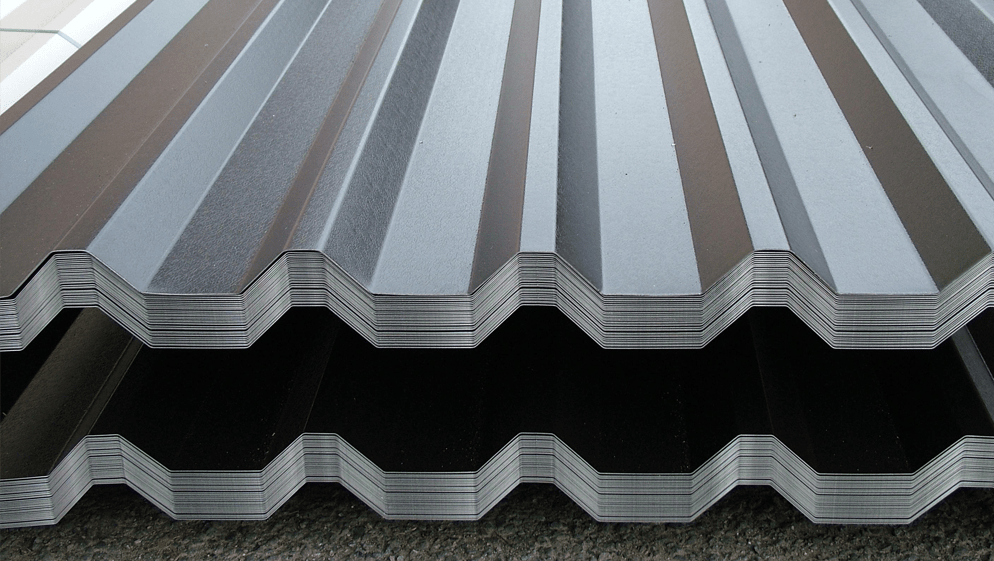

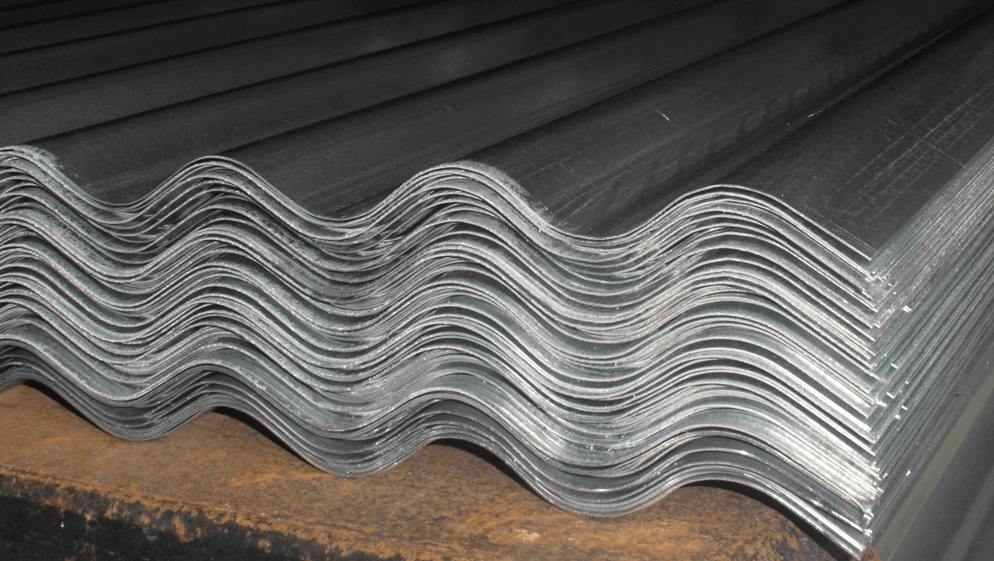

Make :Sail, Essar & Jindal

USe FOR

  • Construction
  • Corrugated Sheets
  • Agriculture Equipment
  • Automotive Applications
  • General Engineering Applications
  • White Goods
  • Color Coating
Thickness(in mm) (Gauge in bracket) Width (mm) Length (mm)
1.6 (16), 1.25 (18) 885, 800 2500, 3000
1.00 (20), 0.8 (22) 885, 800 2500, 3000
0.63 (24), 0.50 (26) 885, 800 2500, 3000

Inquire Now

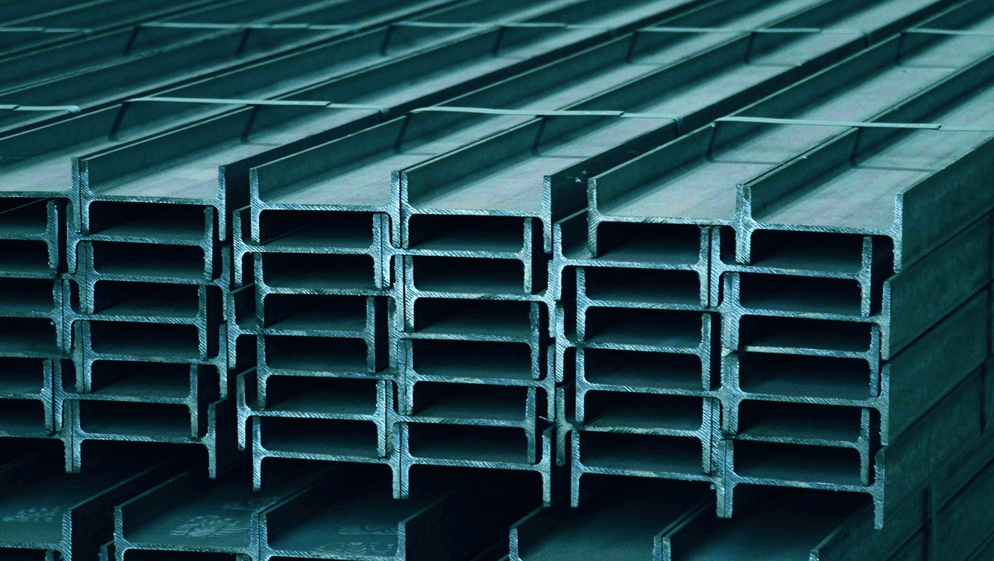

Grade - IS 2062 Gr.A

Make : Sail, Vizag, Jindal, Raipur , Punjab & Rolling Mills

Size 100 x 50 125 x 70 150 x 75 150 x 150 175 x 85
KG/Meter 8.00 13.20 15.00 37.10 19.20
Size 200 x 100 225 x 110 250 x 125 300 x 140 350 x 140
KG/Meter 25.40 31.20 37.20 45.10 52.90
Size 400 x 140 450 x 140 500 x 180 600 x 210
KG/Meter 62.60 73.10 87.70 99.50

Inquire Now

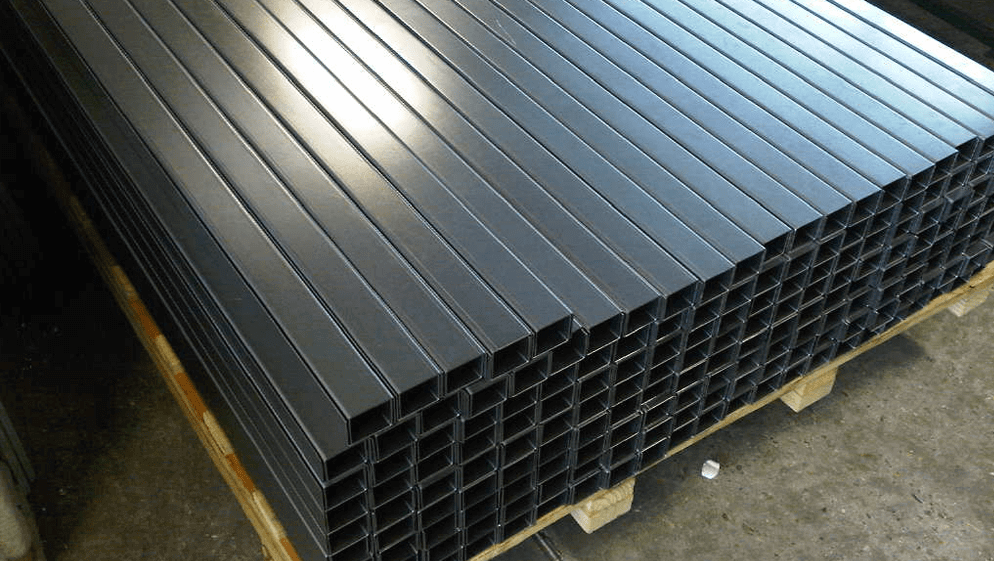

Grade - IS 2062 Gr.A

Make : Sail, Vizag, Jindal, Raipur , Punjab & Rolling Mills

Size 75 x 40 100 x 50 125 x 65 150 x 75 175 x 75
KG/Meter 6.80 9.20 12.80 16.40 19.60
Size 200 x 75 225 x 80 250 x 80 300 x 90 400 x 100
KG/Meter 22.30 26.00 30.40 36.30 50.10

Inquire Now

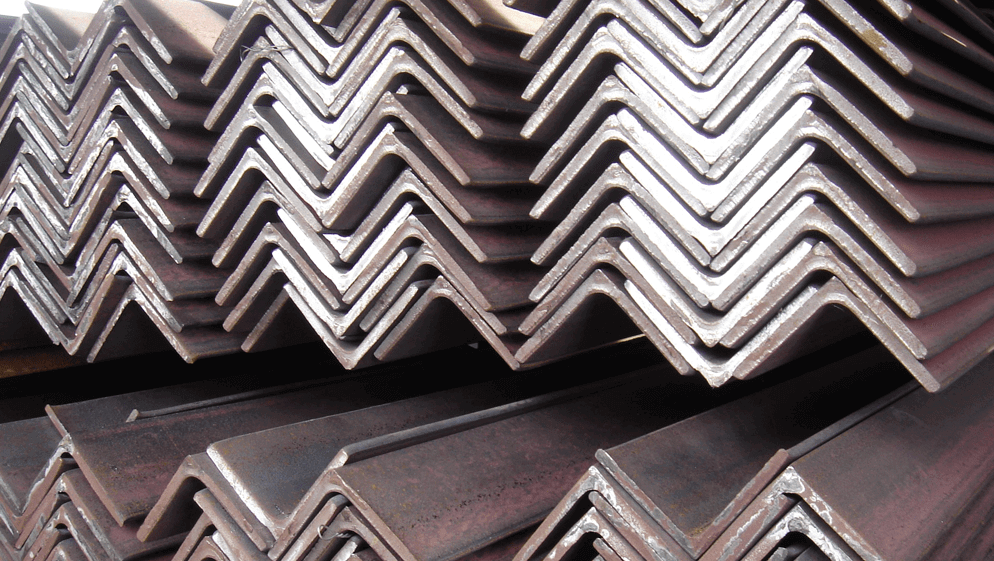

Grade - IS 2062 Gr.A

Make : Sail, Vizag, Jindal, Raipur , Punjab & Rolling Mills

Size 20 x 20 x 3 25 x 25 x 3 25 x 25 x 5 30 x 30 x3 30 x 30 x 5
KG/Meter 0.90 1.10 1.80 1.40 2.20
Size 35 x 35 x 3 35 x 35 x 5 35 x 35 x 6 40 x 40 x 5 40 x 40 x 6
KG/Meter 1.60 2.60 3.00 3.00 3.50
Size 45 x 45 x 5 45 x 45 x 6 50 x 50 x 5 50 x 50 x 6 65 x 65 x 6
KG/Meter 3.40 4.00 3.80 4.50 6.00
Size 65 x 65 x 10 75 x 75 x 6 75 x 75 x 8 75 x 75 x 10 90 x 90 x 6
KG/Meter 1.60 2.60 3.00 3.00 3.50
Size 90 x 90 x 8 90 x 90 x 10 100 x 100 x 6 100 x 100 x 8 100 x 100 x 10
KG/Meter 10.80 13.40 9.20 17.70 14.90
Size 110 x 110 x 8 110 x 110 x 10 110 x 100 x 12 130 x 130 x 10 130 x 130 x 12
KG/Meter 13.40 16.50 19.60 19.70 23.40
Size 150 x 150 x 10 150 x 150 x 12 150 x 150 x 16 150 x 150 x 20 200 x 200 x 16/20
KG/Meter 22.80 27.2 35.8 44.10 48.50

Inquire Now

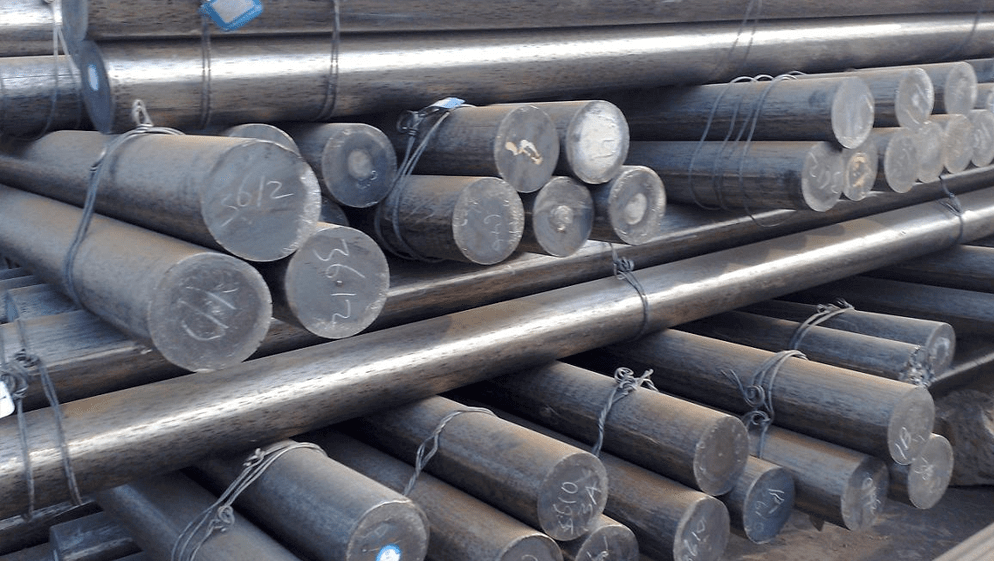

Grade - IS 2062 Gr.A

Make : Sail, Vizag, Jindal, Raipur , Punjab & Rolling Mills

Size 5 6 7 8 9
KG/Meter 0.15 0.22 0.30 0.39 0.50
Size 10 12 13 14 16
KG/Meter 0.62 0.89 1.04 1.21 1.58
Size 18 20 22 25 28
KG/Meter 2.00 2.47 2.98 3.85 4.83
Size 30 32 36 38 40
KG/Meter 5.55 6.31 7.99 8.90 9.86
Size 42 45 47 50 53
KG/Meter 10.87 12.29 13.61 15.41 17.31
Size 56 60 63 71 75
KG/Meter 19.34 22.18 24.47 31.08 34.66
Size 80 90 100 110 125
KG/Meter 39.46 49.94 61.66 74.60 96.34
Size 160
KG/Meter 157.84

Inquire Now

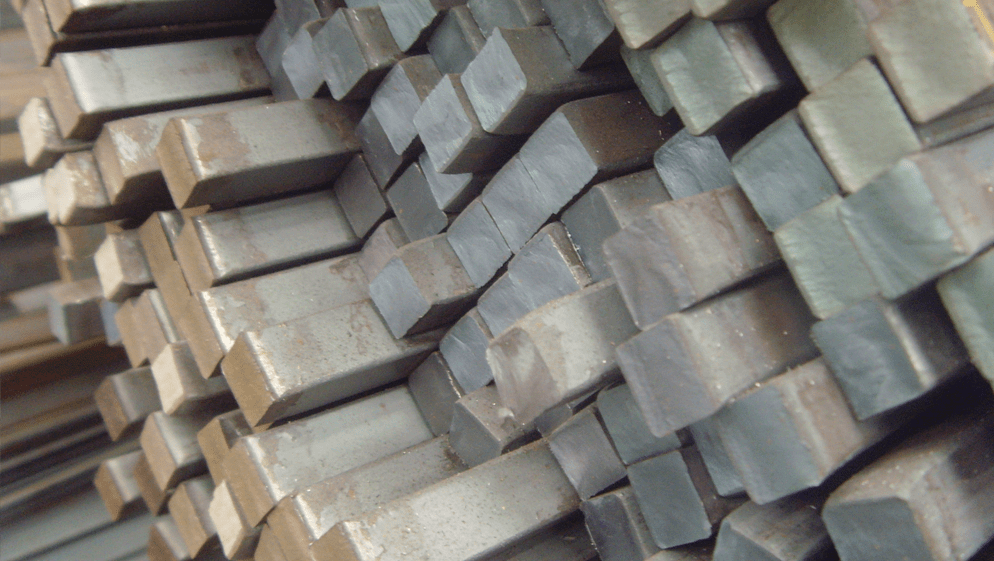

Grade -IS 2062 Gr.A

Make : Sail, Vizag, Jindal, Raipur , Punjab & Rolling Mills

Size 5 6 7 8 9
KG/Meter 0.20 0.28 0.38 0.50 0.64
Size 10 12 13 14 16
KG/Meter 0.78 1.13 1.33 1.54 2.10
Size 18 20 22 25 28
KG/Meter 2.54 3.14 3.80 4.91 6.15
Size 30 32 36 38 40
KG/Meter 7.06 8.04 10.17 11.34 12.56
Size 42 45 47 50 53
KG/Meter 13.88 15.90 17.34 19.62 22.05
Size 56 60 63 71 75
KG/Meter 25.62 28.26 31.16 39.57 44.15
Size 80 90 100 110 125
KG/Meter 50.24 63.58 78.50 94.98 122.66
Size 160
KG/Meter 200.96

Inquire Now

Grade - IS 2062 Gr.A

Make : Raipur , Punjab & Rolling Mills

Size 12 x 3 16 x 3 16 x 5 20 x 3 20 x 5
KG/Meter 0.28 0.38 0.63 0.47 0.79
Size 20 x 6 25 x 6 25 x 10 25 x 12 30 x 5
KG/Meter 0.94 1.02 2.00 2.40 0.70
Size 30 x 6 30 x 10 30 x 12 30 x 16 35 x 6
KG/Meter 0.90 2.40 2.40 3.80 1.60
Size 35 x 10 35 x 12 35 x 16 40 x 3 40 x 5/6
KG/Meter 2.80 3.30 4.40 0.80 1.60
Size 40 x 10/12 40 x 16/20 45 x 10 50 x 3 50 x 5
KG/Meter 3.80 6.00 3.50 1.20 2.00
Size 50 x 6 50 x 8 50 x 10 50 x 12 50 x 16
KG/Meter 2.40 3.10 3.90 4.70 6.30
Size 50 x 20 65 x 6 65 x 8 65 x 10 65 x 12
KG/Meter 7.80 3.10 4.10 5.10 6.10
Size 65 x 16 65 x 20 65 x 25 65 x 32 75 x 6
KG/Meter 8.20 10.20 12.80 16.30 3.50
Size 75 x 8 75 x 10 75 x 12 75 x 16 75 x 20
KG/Meter 4.70 5.90 7.10 9.40 11.80
Size 75 x 25 75 x 32 80 x 25 100 x 6 100 x 10
KG/Meter 14.70 18.80 20.10 4.70 7.80
Size 100 x 12 100 x 16 100 x 20 100 x 25 100 x 32
KG/Meter 9.40 12.60 15.70 19.60 25.10
Size 125 x 6 125 x 10 125 x 12 130 x 10 150 x 10
KG/Meter 5.90 9.80 11.80 10.20 11.80
Size 150 x 12 150 x 16 150 x 20 150 x 25 180 x 20
KG/Meter 14.20 18.80 23.60 29.50 28.30

Inquire Now

Grade - IS 2062 Gr.A

Make : Raipur , Rolling Mills

Size 20 x 20 x 3 30 x 30 x 3 30 x 30 x 4 40 x 40 x 6 50 x 50 x 5
KG/Meter 0.90 1.40 1.80 3.50 4.40
Size 60 x 60 x 6 75 x 75 x 10 80 x 80 x 6 100 x 100 x 10
KG/Meter 5.40 10.96 9.60 14.90

Inquire Now

Grade -IS 2062 Gr.A

Make :Sail

Size 20 24 30 50 60
KG/Meter 9.92 11.91 11.91 24.80 29.76
Size 56 70 75 80 90
KG/Meter 27.78 34.72 37.13 63.62 44.61
Size 100 105
KG/Meter 49.60 52.90

Inquire Now

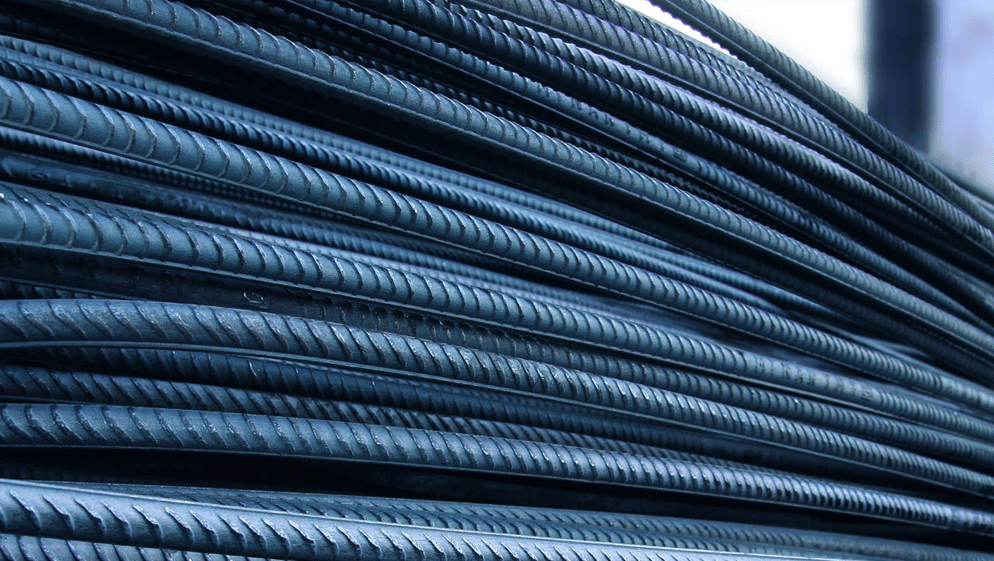

Grade -IS 2062 Gr.A

Make :Essar, Tata, etc.

Size 6 M.M 8 M.M 10 M.M 12 M.M 14 M.M
KG/Meter 0.222 0.395 0.617 0.888 1.208
Size 16 M.M 18 M.M 20 M.M 22 M.M 25 M.M
KG/Meter 1.578 2.000 2.466 2.980 3.854
Size 28 M.M 32 M.M 36 M.M 40 M.M 52 M.M
KG/Meter 4.830 6.313 7.990 9.864 15.410

Inquire Now

Inquire Now

Inquire Now

Inquire Now

Inquire Now

Inquire Now
